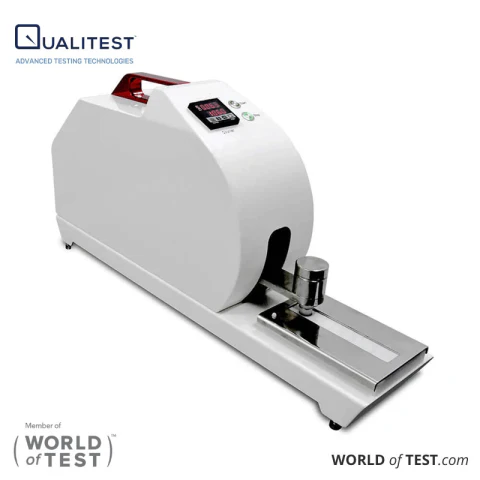

Crock Meter and Crocking Test Machine - Q-Crock100

Overview

The Q-Crock100 is a reliable electronic crock meter engineered to determine the color fastness of textiles against dry or wet rubbing. Also serving as a robust crocking test machine, this unit ensures consistent results for cotton, wool, silk, and synthetic fibers.

Compliant with ISO 105 and AATCC 8 standards, the Q-Crock100 features a pre-set digital counter and rapid sample mounting, making it an essential tool for quality assurance in dyeing and textile manufacturing.

Features & Benefits

• Precision Linear Movement: A stable slide rail guides the friction finger, ensuring even pressure and straight-line motion to deliver reproducible data and avoid uneven staining.

• Digital Cycle Control: Equipped with an electronic counter capable of tracking up to 999,999 strokes, this crock meter automatically stops once the pre-set count is reached.

• Versatile Testing: Capable of performing both wet and dry rubbing tests, this crocking test machine applies a constant 9N load to assess color transfer accurately on various fabrics.

• User-Friendly Design: Features an easy-lift system for quick abrasive changes and a pinned acrylic holder that secures samples firmly to prevent wrinkling during operation.

• Global Compliance & Durability: Built to meet strict ISO and AATCC specifications, the unit is shielded against dust and debris, ensuring a long operational life in busy lab environments.



Crock Meter – Q-Crock100 Technical Specifications

Rubbing head	16 mm
Vertical pressure	9N+/-10%
Rubbing stroke	104 mm
Counter	1 ~ 999,999 times, automatically stop
Net Weight	11 kg
Dimensions	170 mm * 650 mm * 330 mm
Power	220/110 V 50/60 Hz 3 A
Standards	ISO 105x12 (circular rubbing head), GB/T 3920 (circular rubbing head), AATCC8, ISO 20433 Method C
Optional Standards	ISO 105xD02, ISO 105x12 (rectangular rubbing head), GB/T 3920 (rectangular rubbing head), AATCC165



Standard Accessories

• AATCC rubbing cloth
• Sand paper
• Clamping sleeve
• Sampling plate


Optional Accessories and consumables

• AATCC/ISO rubbing cloth
• ATCC/ISO Gray Scale for Staining
• Sandpaper
• Rectangular rubbing head with clamp ring
• Circular clamp ring
