Carton Box Compression Tester - QualiBCT™ LCD
Overview

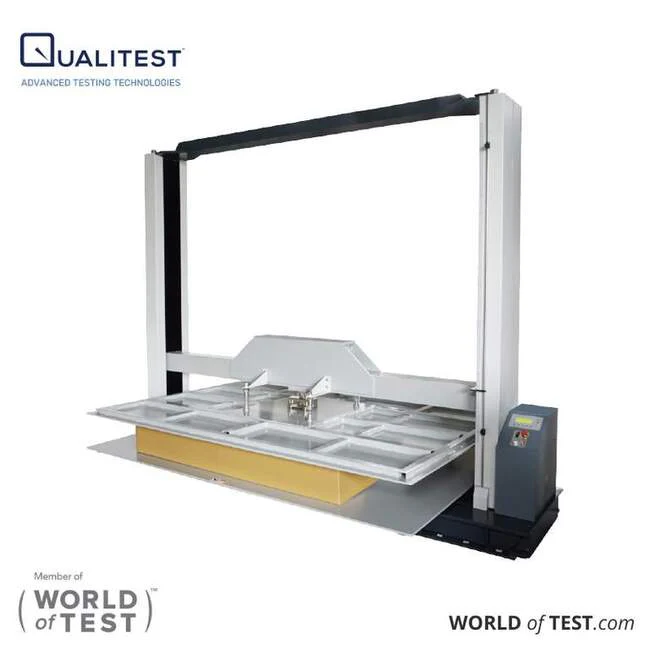

The QualiBCT™ LCD 20/50 is a big-format carton box compression tester made specifically to figure out the crush resistance of protective containers for large-screen displays.
As a specialized carton compression tester, it uses a unique three-sensor system under its base to get very accurate force readings. It's the right choice for making sure your packaging for delicate electronics is up to the job.
Features & Benefits
-
Balanced Force Readings: Comes with three separate sensors under the base to give you a very balanced and accurate picture of how the force is distributed, which is really important for large items.
-
Customized for Your Needs: The machine's large size and load capability can be made to your exact specifications, which helps the high-accuracy servo system work even better.
-
Advanced Software Option: You can add on special software that connects to the machine, letting you run more in-depth checks and see real-time graphs of the force and displacement.
-
Self-Adjusting Platen: The top squashing plate has a universal-joint setup, so it automatically sits flat against your item, even if the surface isn't perfectly even.
-
Smooth Servo Operation: Run by a high-grade servo motor system, this carton box compression tester delivers very exact movement for dependable test speeds and consistent results.
| Model | QualiBCT™ LCD50 | QualiBCT™ LCD20 |
|---|---|---|
| Test Space | 2700 x 1800 x 1500 mm | 1800 x 2600 x 1600 mm |
| Max Capacity | 5000kg (50kN) | 2000kg (20kN) |
| Compression Plates | Upper compression platen with universal design accommodating testing objects that automatically adjust flat surface | |
| Units |
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Precision & Resolution |
Force Resolution: 31 bits Force Precision: 1/100,000 Stroke Resolution: 0.0001mm |
|
| Test Speed | Low speed mode: 0.0001 ~ 0.95mm/min High speed mode: 0.015 ~ 300mm/min |
|
| System & Safety |
PC-Port: RJ45 (TCP/IP) Hardware Safety Protection: Up/down limit, emergency stop button protection Motor: Servo motor Voltage: Single phase 200 ~ 240VAC (110V Upon Request) |
|
| Dimension (WxDxH) | 2700 x 2600 x 2400 mm | 1800 x 3300 x 2600mm |
| Weight | Approx. 2100kg | Approx. 2600kg |
